Surviving Deprecations to Resources and Properties on Other APIs

Deprecation, is the art of telling people to stop using that thing, because that
thing is probably going away at some point. Even if there are no solid plans to
delete the thing entirely, the thing might be deprecated just because it sucks
to work with, but usually it's because it has been replaced with a better idea.

Regardless of the type of API you are
interacting with, and the approach they take to
versioning,
there are no absolute promises the team in charge will deprecate things
carefully. Some API providers act like
jerks and just
arbitrarily change things, remove things, and break stuff. Closing APIs down
with no warning (or poor warning) is utterly disgraceful behavior, but it does
happen.

Wrapping dependencies and having backup plans for this sort of situation is
another article. Luckily, more often than not a more reasonable approach is
taken, and API providers will communicate change in a variety of ways. This
chapter is going to outline a few ways in which you might find out about
changing happening to an API you're interacting with, so you don't lose business
from not noticing a breaking change.

Low-Tech General Solutions

As ludicrous as it might sound, the entire extent of some API providers attempts
to communicate upcoming change is to write a blog about it and hope you notice.
These blog articles explain things like "Hey we're closing off the free access
to this API”, or "We are replacing this Foo API with a Bar API, and you have 3
months to stop using the Foo API before we shut it down”. Fingers crossed you
see it!

This low-tech approach has no real solutions I can think of, other than…
subscribe to the api providers engineering blog on RSS, and — so long as the RSS
reader you're using doesn't get shut down — you might notice the article.

If they have a newsletter then subscribe to that, maybe with a "devs@" email
address or team-specific email address, to improve the bus factor on this. You
don't want the announcement going to a member of the team who's quit, then the
API breaks just because the rest of the team didn't know about the change.

APIs requiring authentication will usually ask for an email address in return
for the authentication credentials (API keys, access tokens, etc.) This gives
API providers one more way to get in touch about change, and again, make sure
it's not the email of a manager or team lead, but a distribution email address
for the team.

Endpoint-based APIs

If an API is using global versioning, then they might deprecate all the
endpoints under /v1/ at the same time, and suggest you use all the /v2/
endpoints. If they're using evolution they might suggest that /companies is
going away, and you should start to work with /accounts instead. The
suggestions here may come in the form of low-tech announcements, but they can
also be communicated in-band.

Deprecating Endpoints

There is a a proposed standard: Sunset
Header, which at the
time of writing is at draft 05. APIs can add a simple header to the HTTP
response, to let clients know the endpoint is nearing the end of its life.

Update 20th May, 2019: Sunset HTTP Header was released as RFC
8594.

Supporting Sunset is as simple as sniffing for the sunset header, and it
contains a HTTP date
which looks a little like this:

Sunset: Sat, 31 Dec 2018 23:59:59 GMT

The proposed standard also allows responses to contain a HTTP link header, with
rel=sunset. The link can be a link to anything, the endpoint replacing it, a
link to some human readable documentation, a blog post, whatever. Keep an eye
out for sunset headers and their accompanying links coming back in responses
your code is getting, and log, or alert, or pass to a dashboard accordingly. If
you are using Ruby or PHP there are already easy to use middleware for the most
popular HTTP clients:

• PHP: hskrasek/guzzle-sunset
• Ruby: wework/faraday-sunset

Some API gateways like Tyk are building in
support, and it's going to
become far more wide-spread over time. If you make an implementation for your
favorite HTTP client please get in touch in the comments.

Another approach commonly used by API providers is to provide SDKs, and if they
are kept up to date they'll fling out deprecation warnings about resources that
are going away.

When you get these notifications, check the errors for what to do next, or go to
their documentation to figure it out, or shout at their customer support for not
making it clear what you're meant to be doing next and they'll do a better job
next time.

Deprecating Properties

Other than the entire endpoint going away, specific properties may over time be
deprecated. This is less common in global versioning as they would just remove
those in the next global version. It is not a regular occurrence in evolution as
they too would just wait until the creation of a new resource for the concept,
but it can happen if a property absolutely has to go away. JSON is the main
content type in use these days, which does not have a type system built in.
There is no way to mark a JSON field as deprecated in just JSON, and no
standards exist to help, even JSON Schema still has this on the todo
list but I added a deprecated keyword to JSON
Schema as part
of draft 08.

Again SDKs can mark things as deprecated over time, especially those built with
OpenAPI v3.0 or later. OpenAPI added the deprecated: true keyword, so SDKs can
now look for this and fire off deprecation warnings for clients using that
property in their code. Keeping up to date is important, so make sure something
like Dependabot is implemented to keep tabs
on dependencies.

GraphQL

GraphQL pushes hard for evolution in its marketing and most advice in the
ecosystem, which is awesome. They do not have a huge amount of documentation
covering deprecations, and much of it comes from third-parties like Apollo, but
it's certainly possible.

Deprecating Types

Instead of endpoints, GraphQL has types. There is no first class support for
deprecating types in GraphQL at the time of writing. When an API is unable to
evolve a concept through adding new properties alone, a new type will pop up
somewhere. A low-tech solution like a blog or email announcement may be used to
communicate this new type, and the deprecation of the old type. Another possible
solution is to deprecate all the properties in the type, and mark in the
deprecation reason that the whole type is going away.

Deprecating Properties

The API provider will add the @deprecated keyword to the type:

type User {
 name: String @deprecated(reason: "Property 'name' was split into 'firstname' and lastname'")
 firstname: String
 lastname: String
}

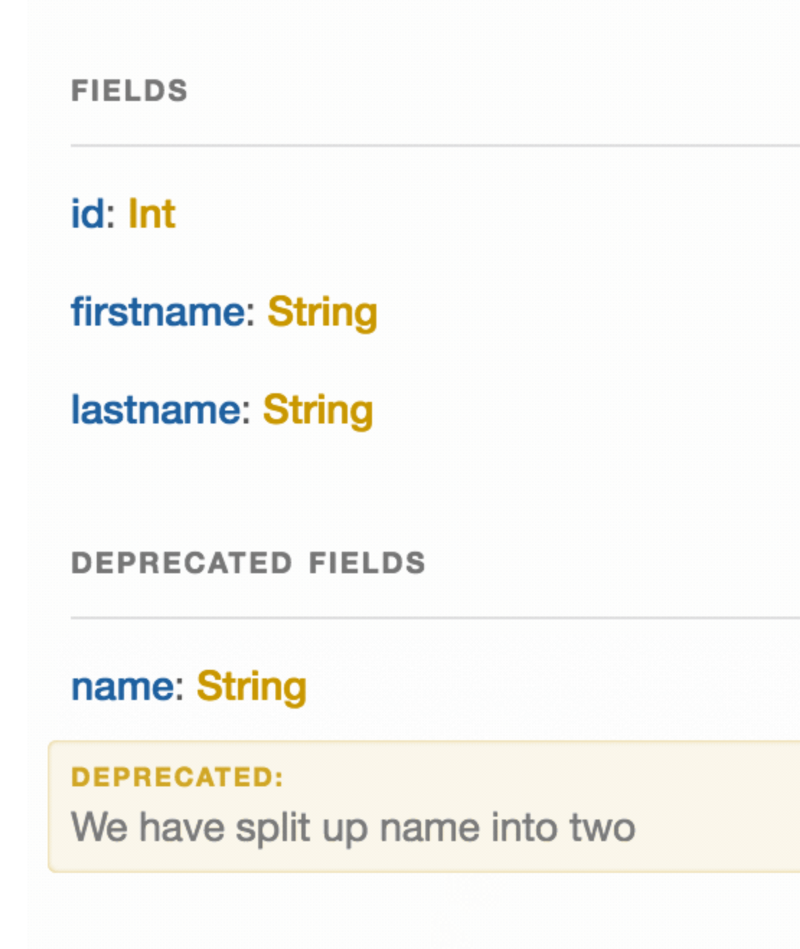

When looking at a GraphQL API through GraphiQL, the documentation that it autogenerates will show deprecated fields, visually separated from the other fields (smart!)

GRPC (Protobuf)

Protobuf has an option for marking a "field” as deprecated.

optional int32 old_field = 6 [deprecated=true];

Full snipped from their documentation:

deprecated (field option): If set to true, indicates that the field
is deprecated and should not be used by new code. In most languages this has no
actual effect. In Java, this becomes a @Deprecated annotation. In the future,
other language-specific code generators may generate deprecation annotations on
the field's accessors, which will in turn cause a warning to be emitted when
compiling code which attempts to use the field. If the field is not used by
anyone and you want to prevent new users from using it, consider replacing the
field declaration with a reserved statement.

Seems like they don't have an option for deprecating the whole message, but
theoretically you can just mark anything as deprecated. The implementations
won't actually do anything about it, but you can probably hack something into
something or send some PRs to get that done.

Summary

Whatever system you're using, things feel pretty similar. Keep an eye out for
deprecations at various levels if you're talking to an evolving API, and keep an
eye out for new versions if the API is globally versioned.

If you work for a company that considers itself an API provider, what is your
approach to letting folks know something is going away? Do you have a support
team who reach out? Is there another approach I missed?

Get in touch on Twitter @apisyouwonthate.
We'd love to hear from folks who have been handling deprecations in GraphQL and
Protobuf successfully.
